product feature
1. Large flow, full head, full voltage, suitable for household and civil use;
2. Oil-immersed motor, submersible depth of 120 meters; plug-in cable, easy to replace;
3. Water pump use environment: room temperature clean water;
4. Built-in capacitor, easy to install;
5. The motor is automatically protected.

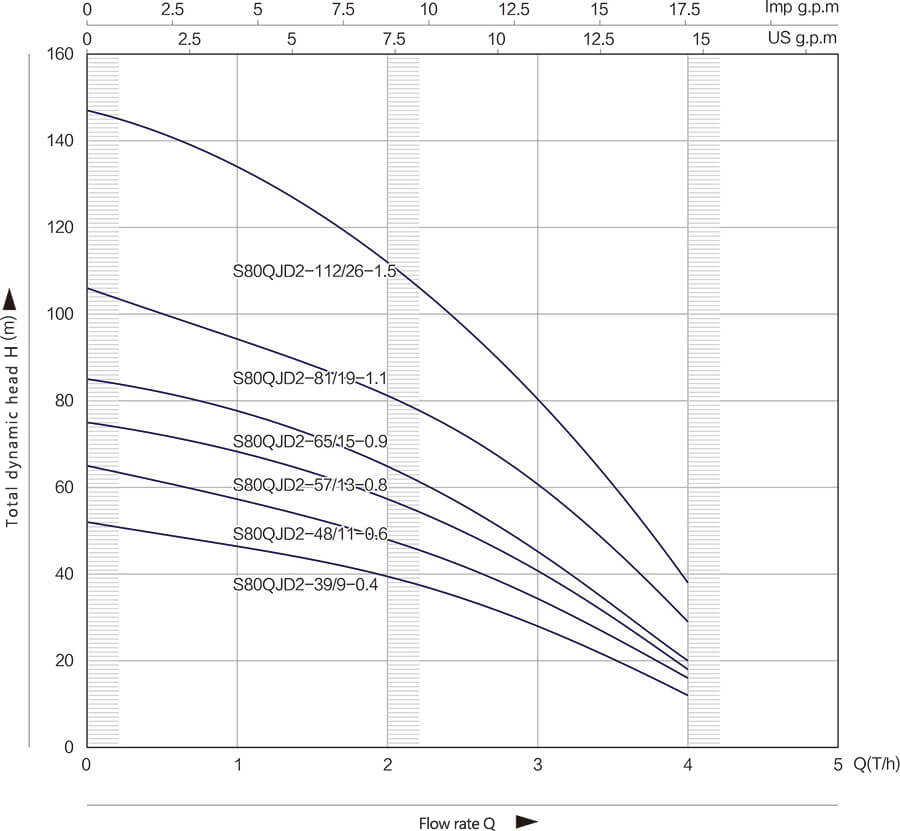

| S80QJDseries 2T technical parameters | |||||||||||
| Model | Voltage (V) |
Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 1 | 1.5 | 2 | 3 | 4 |
| S80QJD2-39/9-0.4 | 220 | 0.4 | 1.0" | 92 | Total dynamic head H(m) | 52 | 47 | 44 | 39 | 28 | 12 |
| S80QJD2-48/11-0.6 | 220 | 0.6 | 1.0" | 92 | 65 | 58 | 54 | 48 | 24 | 16 | |
| S80QJD2-57/13-0.8 | 220 | 0.8 | 1.0" | 92 | 76 | 68 | 64 | 57 | 39 | 18 | |
| S80QJD2-65/15-0.9 | 220 | 0.9 | 1.0" | 92 | 85 | 77 | 72 | 65 | 44 | 20 | |
| S80QJD2-81/19-1.1 | 220 | 1.1 | 1.0" | 92 | 106 | 96 | 89 | 81 | 55 | 29 | |
| S80QJD2-112/26-1.5 | 220 | 1.5 | 1.0" | 92 | 147 | 135 | 127 | 112 | 78 | 38 |

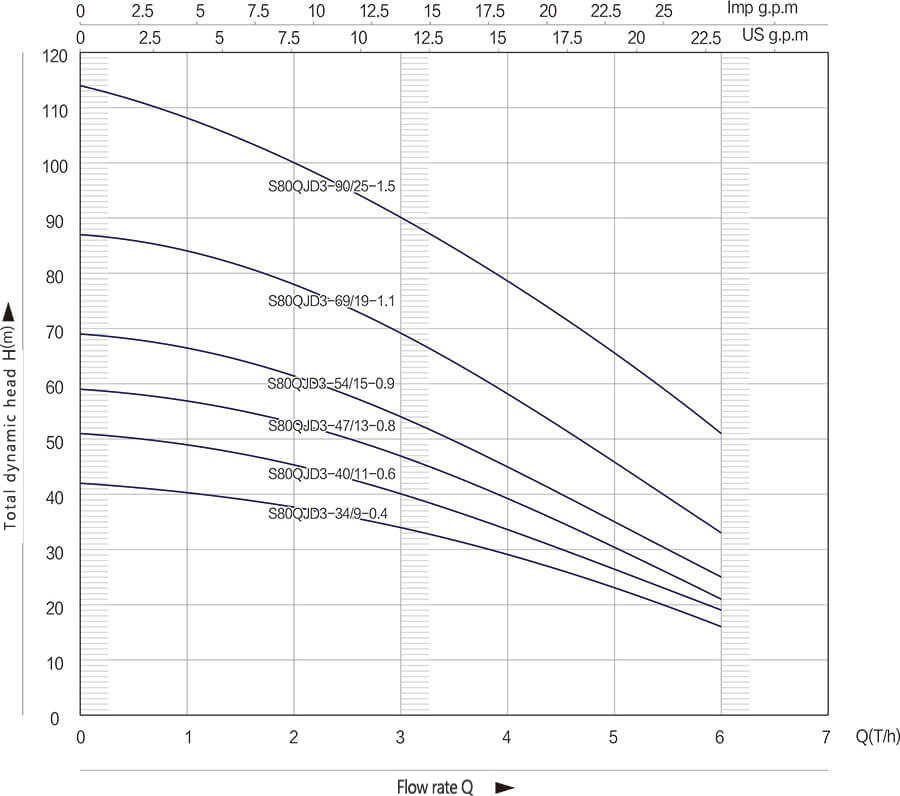

| S80QJD series 3T technical parameters | |||||||||||
| Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 2 | 3 | 4 | 5 | 6 |
| S80QJD3-34/9-0.4 | 220 | 0.4 | 1.0" | 92 | Total dynamic head H(m) | 42 | 38 | 34 | 30 | 24 | 16 |
| S80QJD3-40/11-0.6 | 220 | 0.6 | 1.0" | 92 | 51 | 46 | 40 | 37 | 28 | 19 | |
| S80QJD3-47/13-0.8 | 220 | 0.8 | 1.0" | 92 | 59 | 54 | 47 | 44 | 33 | 21 | |
| S80QJD3-54/15-0.9 | 220 | 0.9 | 1.0" | 92 | 69 | 63 | 54 | 51 | 40 | 25 | |
| S80QJD3-69/19-1.1 | 220 | 1.1 | 1.0" | 92 | 87 | 79 | 69 | 62 | 54 | 33 | |
| S80QJD3-90/25-1.5 | 220 | 1.5 | 1.0" | 92 | 114 | 109 | 90 | 82 | 74 | 51 |
