product feature
1. Large flow, full head, full voltage, suitable for household and civil use;
2. Oil-immersed motor, submersible depth of 120 meters; plug-in cable, easy to replace;
3. Water pump use environment: room temperature clean water;
4. Built-in capacitor, easy to install;
5. The motor is automatically protected.

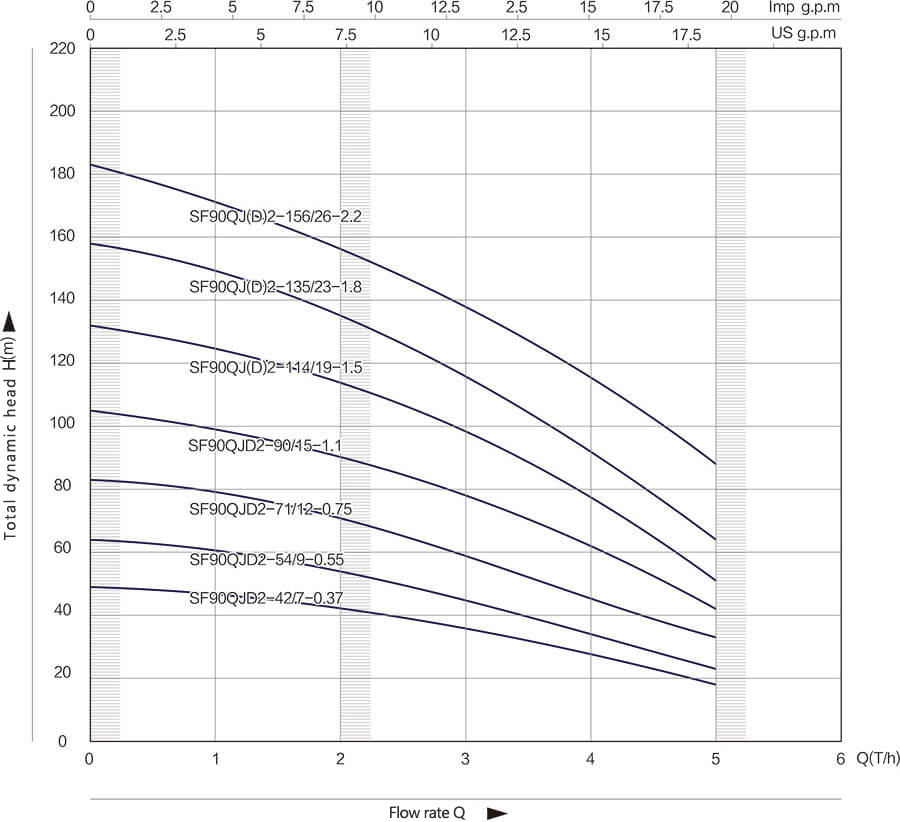

| SF90QJD series 2T technical parameters | |||||||||||
| Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 1 | 2 | 3 | 4 | 5 |
| SF90QJ(D)2-156/26-2.2 | 220 | 0.37 | 1.0" | 100 | Total dynamic head H(m) | 49 | 47 | 42 | 36 | 28 | 18 |
| SF90QJ(D)2-135/23-1.8 | 220 | 0.55 | 1.0" | 100 | 64 | 61 | 54 | 46 | 36 | 23 | |
| SF90QJ(D)2-114/19-1.5 | 220 | 0.75 | 1.0" | 100 | 83 | 79 | 71 | 61 | 48 | 33 | |
| SF90QJD2-90/15-1.1 | 220 | 1.1 | 1.0" | 100 | 105 | 100 | 90 | 77 | 60 | 42 | |
| SF90QJD2-71/12-0.75 | 220/380 | 1.5 | 1.0" | 100 | 132 | 126 | 114 | 97 | 75 | 51 | |
| SF90QJD2-54/9-0.55 | 220/380 | 1.8 | 1.0" | 100 | 158 | 152 | 135 | 115 | 89 | 64 | |
| SF90QJD2-42/7-0.37 | 220/380 | 2.2 | 1.0" | 100 | 183 | 180 | 156 | 149 | 116 | 88 |

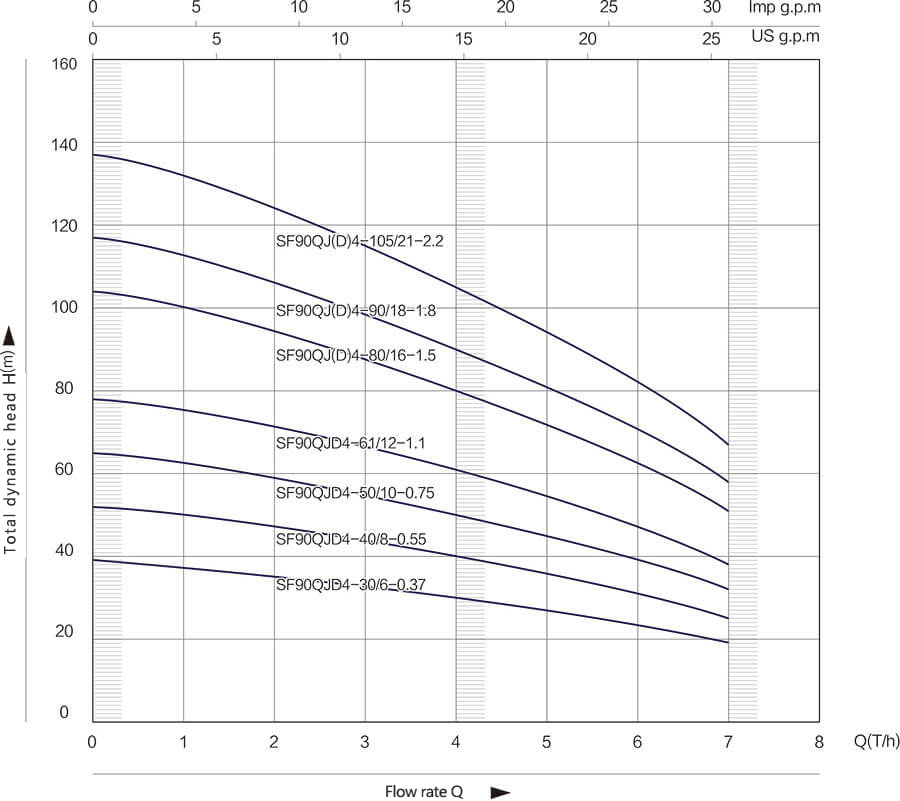

| SF90QJD series 4T technical parameters | ||||||||||||
| Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 2 | 3 | 4 | 5 | 6 | 7 |
| SF90QJD4-30/6-0.37 | 220 | 0.37 | 1.5" | 100 | Total dynamic head H(m) | 39 | 34 | 32 | 30 | 27 | 23 | 19 |
| SF90QJD4-40/8-0.55 | 220 | 0.55 | 1.5" | 100 | 52 | 45 | 43 | 40 | 36 | 31 | 25 | |
| SF90QJD4-50/10-0.75 | 220 | 0.75 | 1.5" | 100 | 65 | 57 | 53 | 50 | 45 | 38 | 32 | |
| SF90QJD4-61/12-1.1 | 220 | 1.1 | 1.5" | 100 | 78 | 68 | 64 | 61 | 54 | 46 | 38 | |
| SF90QJ(D)4-80/16-1.5 | 220/380 | 1.5 | 1.5" | 100 | 104 | 91 | 85 | 80 | 72 | 61 | 51 | |
| SF90QJ(D)4-90/18-1.8 | 220/380 | 1.8 | 1.5" | 100 | 117 | 103 | 95 | 90 | 81 | 68 | 58 | |
| SF90QJ(D)4-105/21-2.2 | 220/380 | 2.2 | 1.5" | 100 | 137 | 120 | 111 | 105 | 95 | 50 | 67 |

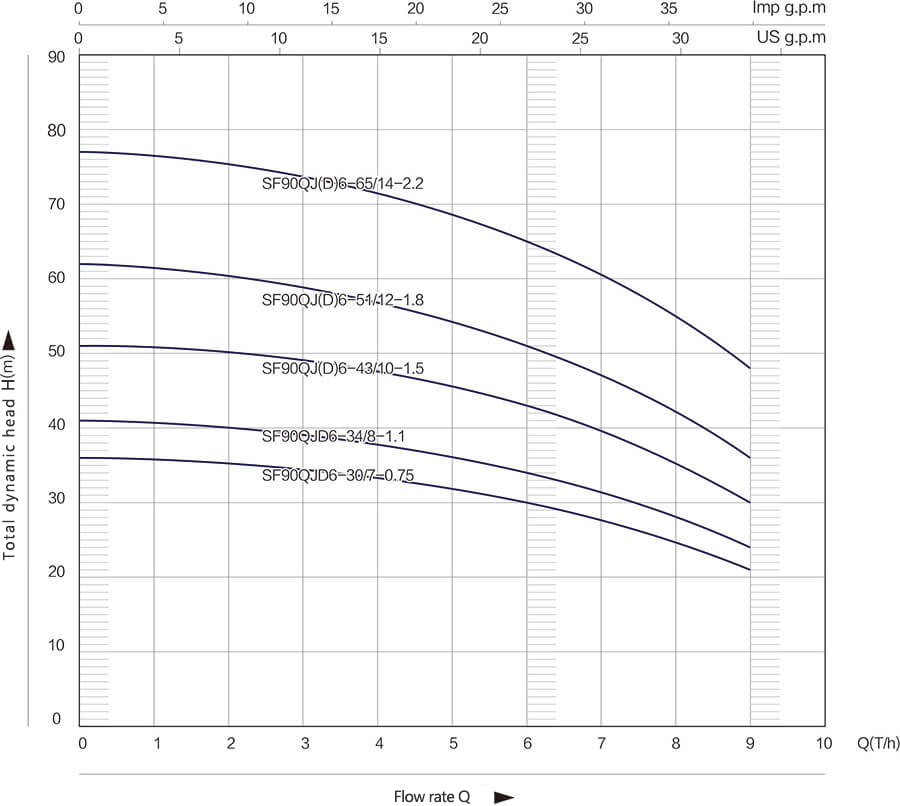

| S90QJ(D) series 6T technical parameters | |||||||||||||
| Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| SF90QJD6-30/7-0.75 | 220 | 0.75 | 1.5" | 100 | Total dynamic head H(m) | 36 | 34 | 32 | 31 | 30 | 28 | 24 | 21 |
| SF90QJD6-34/8-1.1 | 220 | 1.1 | 1.5" | 100 | 41 | 39 | 37 | 35 | 34 | 32 | 27 | 24 | |
| SF90QJ(D)6-43/10-1.5 | 220/380 | 1.5 | 1.5" | 100 | 51 | 49 | 46 | 44 | 43 | 40 | 34 | 30 | |
| SF90QJ(D)6-51/12-1.8 | 220/380 | 1.8 | 1.5" | 100 | 62 | 58 | 55 | 53 | 51 | 48 | 41 | 36 | |
| SF90QJ(D)6-65/14-2.2 | 220/380 | 2.2 | 1.5" | 100 | 77 | 74 | 70 | 68 | 65 | 60 | 52 | 48 |
