product feature
1. Large flow, full head, full voltage, suitable for household and civil use;
2. Oil-immersed motor, submersible depth of 120 meters; plug-in cable, easy to replace;
3. Water pump use environment: room temperature clean water;
4. Built-in capacitor, easy to install;
5. The motor is automatically protected.

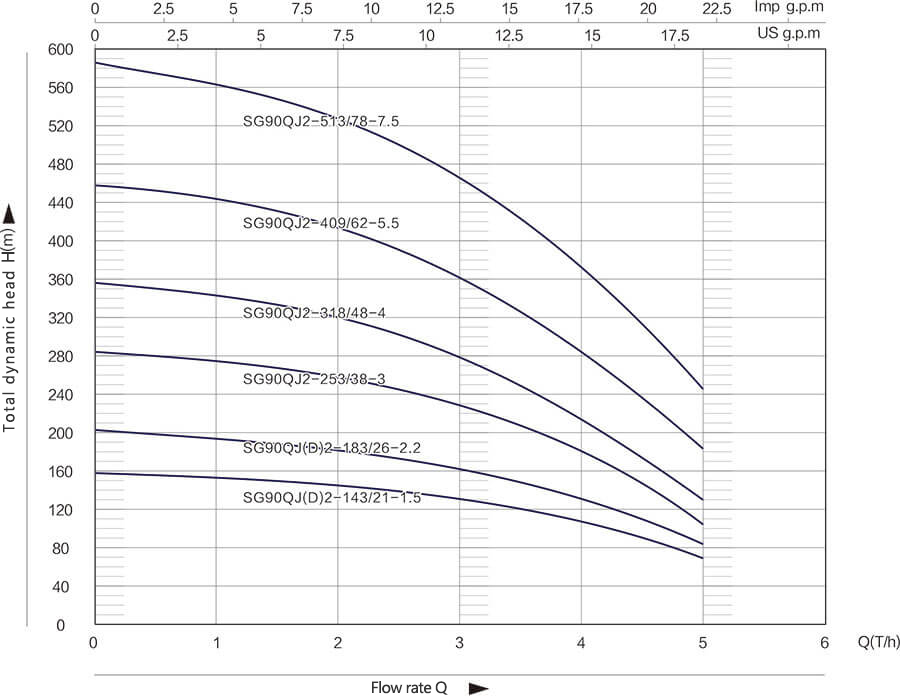

| SG90QJ series 2T technical parameters | |||||||||||
| Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 1 | 2 | 3 | 4 | 5 |
| SG90QJ(D)2-143/21-1.5 | 220/380 | 1.5 | 1.0" | 100 | Total dynamic head H(m) | 157 | 146 | 143 | 128 | 113 | 68 |
| SG90QJ(D)2-183/26-2.2 | 220/380 | 2.2 | 1.0" | 100 | 201 | 188 | 183 | 163 | 133 | 83 | |
| SG90QJ2-253/38-3 | 380 | 3 | 1.0" | 100 | 282 | 263 | 253 | 233 | 183 | 103 | |
| SG90QJ2-318/48-4 | 380 | 4 | 1.0" | 100 | 355 | 333 | 318 | 273 | 223 | 128 | |
| SG90QJ2-409/62-5.5 | 380 | 5.5 | 1.0" | 100 | 457 | 433 | 409 | 373 | 303 | 183 | |
| SG90QJ2-513/78-7.5 | 380 | 7.5 | 1.0" | 100 | 575 | 543 | 513 | 473 | 393 | 245 |

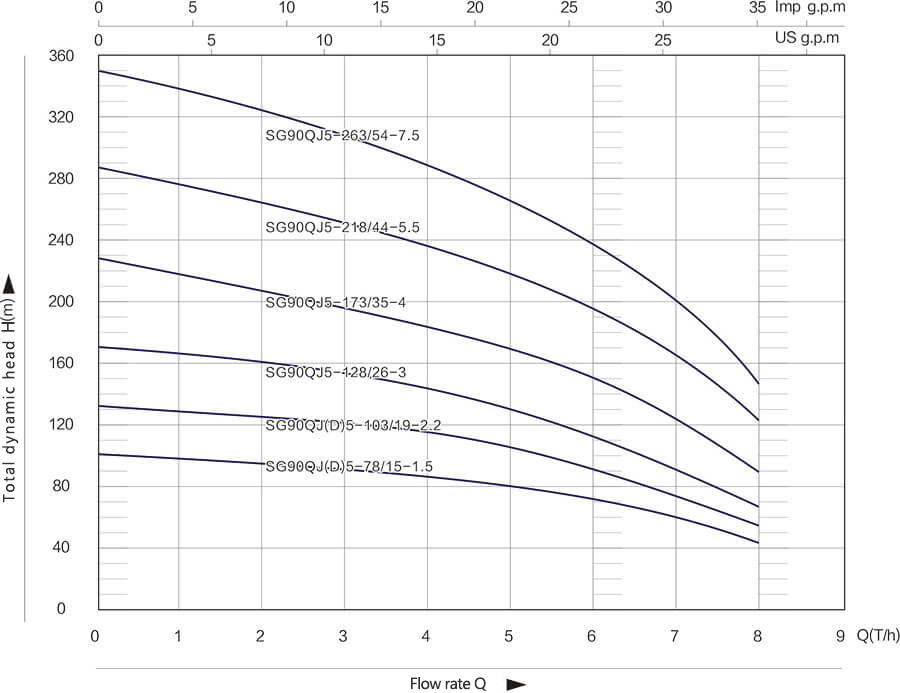

| SG90QJ series 5T technical parameters | ||||||||||||
| Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 3 | 4 | 5 | 6 | 7 | 8 |
| SG90QJ(D)5-78/15-1.5 | 220/380 | 1.5 | 1.5" | 100 | Total dynamic head H(m) | 99 | 93 | 88 | 78 | 69 | 60 | 43 |
| SG90QJ(D)5-103/19-2.2 | 220/380 | 2.2 | 1.5" | 100 | 131 | 118 | 113 | 103 | 89 | 73 | 53 | |
| SG90QJ5-128/26-3 | 380 | 3 | 1.5" | 100 | 169 | 152 | 141 | 128 | 113 | 93 | 66 | |
| SG90QJ5-173/35-4 | 380 | 4 | 1.5" | 100 | 227 | 193 | 184 | 173 | 153 | 123 | 88 | |
| SG90QJ5-218/44-5.5 | 380 | 5.5 | 1.5" | 100 | 285 | 248 | 235 | 218 | 193 | 163 | 122 | |
| SG90QJ5-263/54-7.5 | 380 | 7.5 | 1.5" | 100 | 349 | 305 | 285 | 263 | 238 | 198 | 145 |

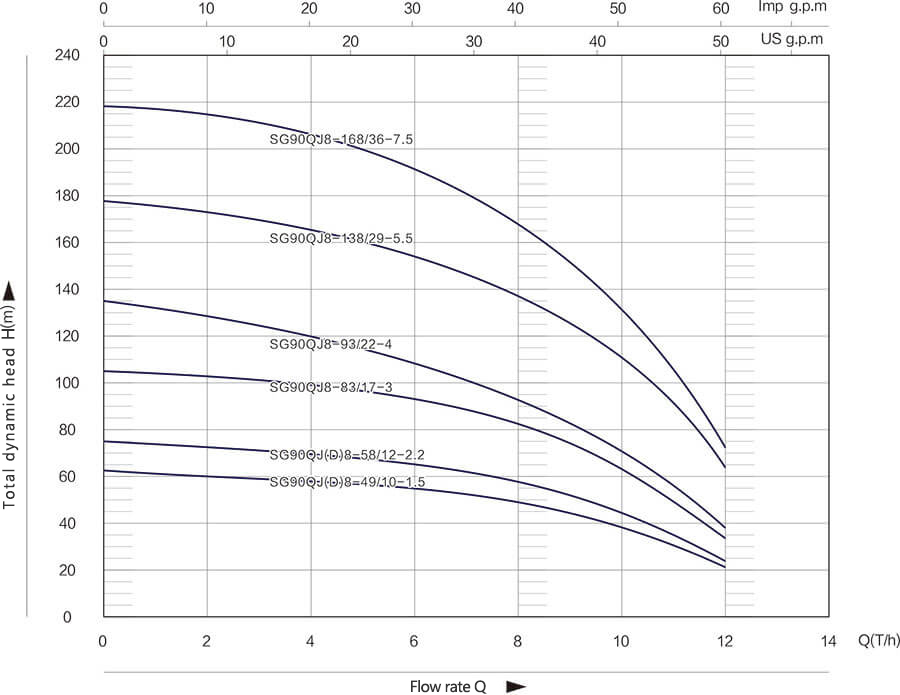

| SG90QJ series 8T technical parameters | ||||||||||||
| Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 6 | 7 | 8 | 9 | 10 | 12 |
| SG90QJ(D)8-49/10-1.5 | 220/380 | 1.5 | 2.0" | 100 | Total dynamic head H(m) | 63 | 55 | 53 | 49 | 43 | 38 | 21 |
| SG90QJ(D)8-58/12-2.2 | 220/380 | 2.2 | 2.0" | 100 | 75 | 65 | 61 | 58 | 62 | 44 | 24 | |
| SG90QJ8-83/17-3 | 380 | 3 | 2.0" | 100 | 105 | 93 | 88 | 83 | 73 | 63 | 34 | |
| SG90QJ8-93/22-4 | 380 | 4 | 2.0" | 100 | 135 | 108 | 101 | 93 | 83 | 70 | 38 | |
| SG90QJ8-138/29-5.5 | 380 | 5.5 | 2.0" | 100 | 177 | 155 | 145 | 138 | 126 | 112 | 64 | |
| SG90QJ8-168/36-7.5 | 380 | 7.5 | 2.0" | 100 | 219 | 191 | 181 | 168 | 153 | 131 | 73 |

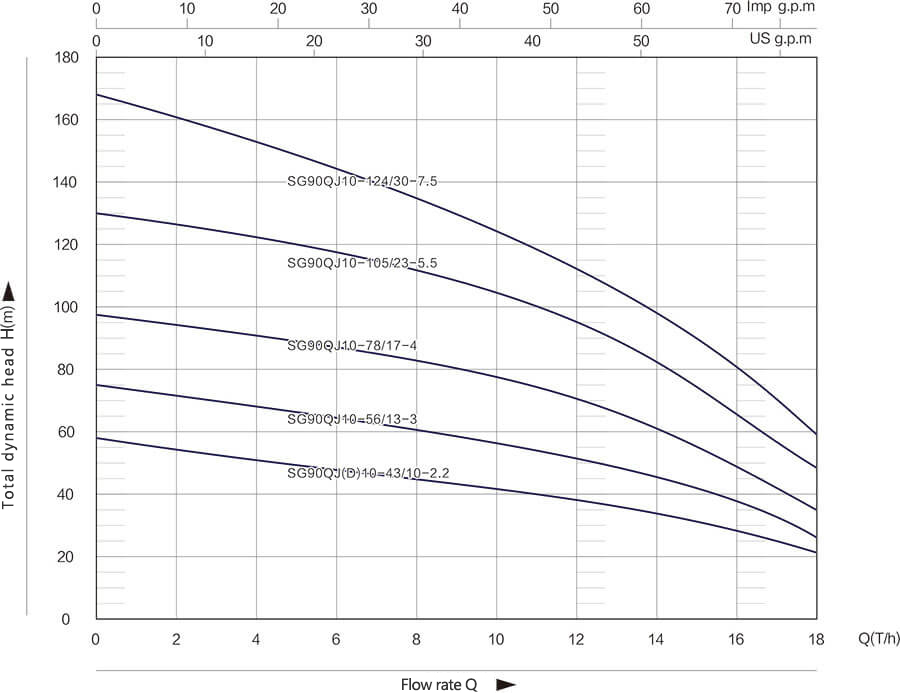

| SG90QJ series 10T technical parameters | ||||||||||||
| Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 8 | 10 | 12 | 14 | 16 | 18 |
| SG90QJ(D)10-43/10-2.2 | 220/380 | 2.2 | 1.5" | 100 | Total dynamic head H(m) | 58 | 44 | 43 | 38 | 33 | 28 | 21 |
| SG90QJ10-56/13-3 | 380 | 3 | 1.5" | 100 | 75 | 61 | 56 | 51 | 45 | 38 | 26 | |
| SG90QJ10-78/17-4 | 380 | 4 | 1.5" | 100 | 97 | 83 | 78 | 71 | 61 | 48 | 35 | |
| SG90QJ10-105/23-5.5 | 380 | 5.5 | 1.5" | 100 | 130 | 111 | 105 | 94 | 81 | 66 | 48 | |
| SG90QJ10-124/30-7.5 | 380 | 7.5 | 1.5" | 100 | 168 | 134 | 124 | 113 | 98 | 81 | 59 |

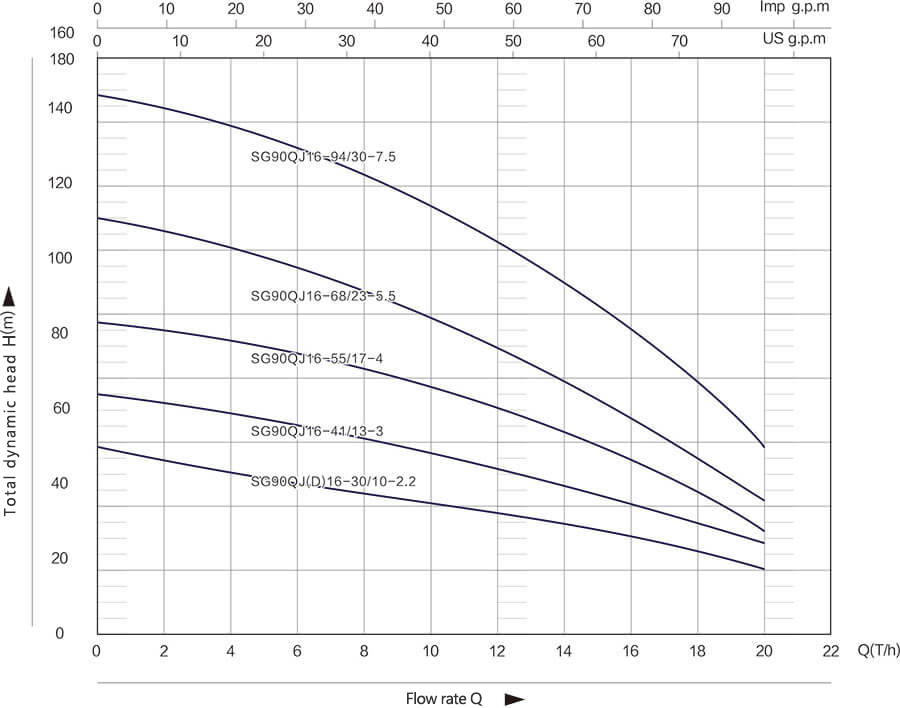

| SG90QJ series 16T technical parameters | |||||||||||||
| Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| SG90QJ(D)16-30/10-2.2 | 220/380 | 2.2 | 2.0" | 100 | Total dynamic head H(m) | 58 | 44 | 41 | 38 | 35 | 30 | 26 | 21 |
| SG90QJ16-41/13-3 | 380 | 3 | 2.0" | 100 | 75 | 62 | 56 | 51 | 45 | 41 | 35 | 28 | |
| SG90QJ16-55/17-4 | 380 | 4 | 2.0" | 100 | 97 | 83 | 78 | 71 | 63 | 55 | 45 | 33 | |
| SG90QJ16-68/23-5.5 | 380 | 5.5 | 2.0" | 100 | 130 | 108 | 99 | 89 | 78 | 68 | 55 | 42 | |
| SG90QJ16-94/30-7.5 | 380 | 7.5 | 2.0" | 100 | 168 | 143 | 134 | 123 | 110 | 94 | 78 | 58 |
