1. Large flow, full head, full voltage, suitable for agricultural and industrial purposes;
2. Oil-immersed motor with a diving depth of 120 meters;
3. Water pump use environment: clean water at room temperature;
4.Industrial plastic impeller, suspension design;;
5. The ceramic sand control structure is wear-resistant;
6. S130 series products adopt national standard Y1 motor, which is not common in other series products.

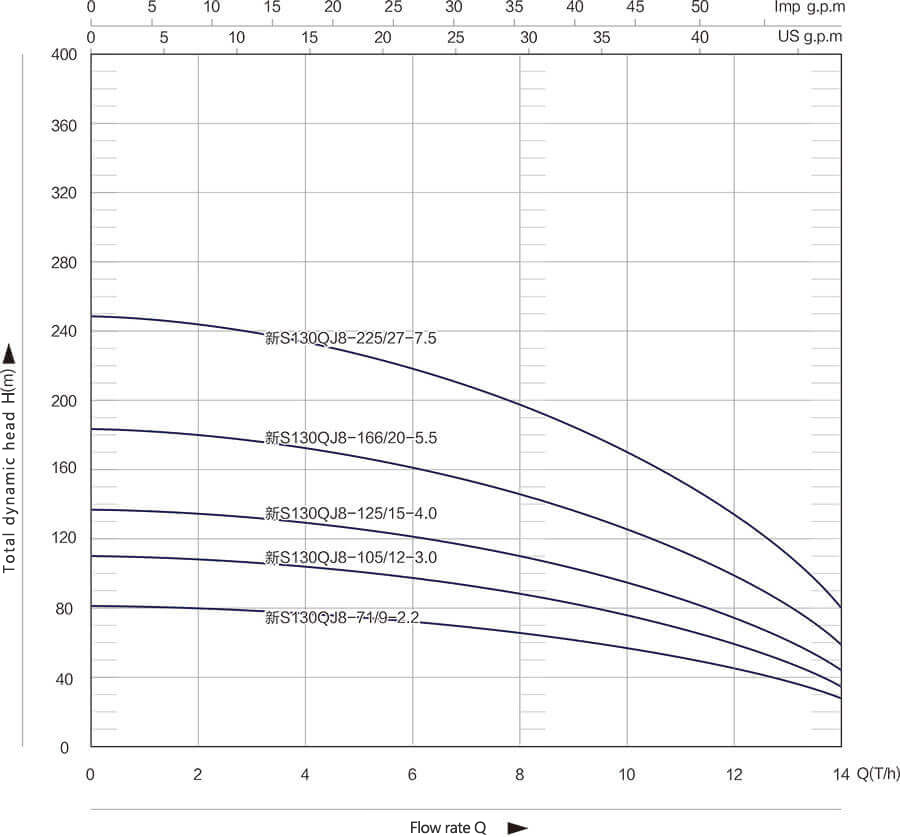

S130QJ series 8T technical parameters | ||||||||||||
Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 4 | 6 | 8 | 10 | 12 | 14 |
新S130QJ8-71/9-2.2 | 380 | 2.2 | 2" | 130 | Total dynamic head H(m) | 82 | 77 | 69 | 71 | 56 | 44 | 27 |
新S130QJ8-105/12-3.0 | 380 | 3 | 2" | 130 | 110 | 102 | 92 | 105 | 74 | 59 | 35 | |
新S130QJ8-125/15-4.0 | 380 | 4 | 2" | 130 | 137 | 128 | 115 | 125 | 93 | 74 | 44 | |
新S130QJ8-166/20-5.5 | 380 | 5.5 | 2" | 130 | 183 | 170 | 153 | 166 | 124 | 98 | 59 | |
新S130QJ8-225/27-7.5 | 380 | 7.5 | 2" | 130 | 247 | 230 | 206 | 225 | 168 | 132 | 80 |

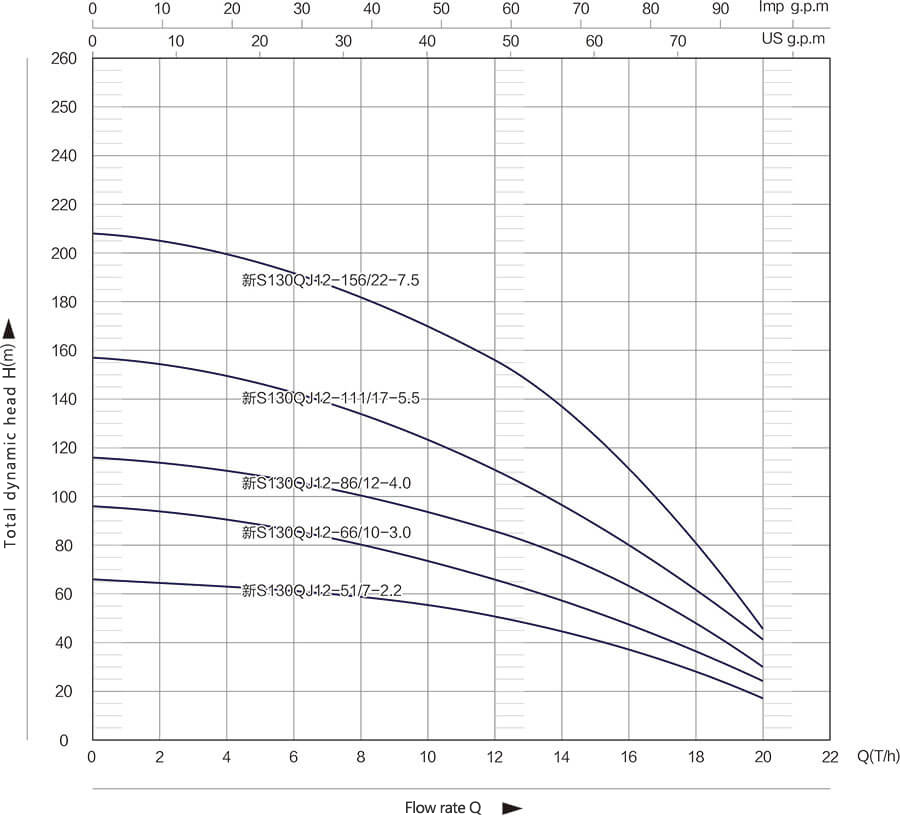

S130QJ series 12T technical parameters | ||||||||||||||
Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
新S130QJ12-51/7-2.2 | 380 | 2.2 | 2" | 132 | Total dynamic head H(m) | 66 | 62 | 59 | 56 | 51 | 44 | 33 | 25 | 17 |
新S130QJ12-66/10-3.0 | 380 | 3 | 2" | 132 | 96 | 88 | 82 | 75 | 66 | 54 | 41 | 36 | 24 | |
新S130QJ12-86/12-4.0 | 380 | 4 | 2" | 132 | 116 | 109 | 104 | 96 | 86 | 71 | 54 | 41 | 30 | |
新S130QJ12-111/17-5.5 | 380 | 5.5 | 2" | 132 | 157 | 144 | 136 | 124 | 111 | 91 | 68 | 63 | 42 | |
新S130QJ12-156/22-7.5 | 380 | 7.5 | 2" | 132 | 208 | 194 | 186 | 174 | 156 | 134 | 104 | 73 | 46 |

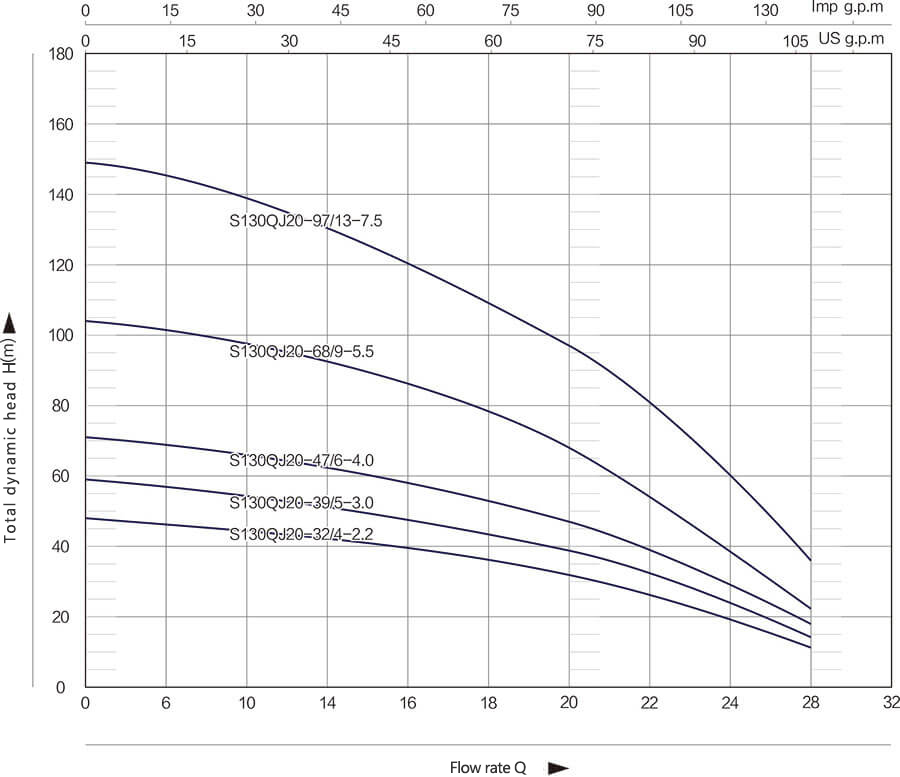

S130QJ series 20T technical parameters | |||||||||||||||
Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 6 | 10 | 14 | 16 | 18 | 20 | 22 | 24 | 28 |
S130QJ20-32/4-2.2 | 380 | 2.2 | 2" | 132 | Total dynamic head H(m) | 48 | 47 | 42 | 56 | 39 | 38 | 35 | 29 | 23 | 12 |
S130QJ20-39/5-3.0 | 380 | 3.0 | 2" | 132 | 59 | 57 | 51 | 75 | 48 | 46 | 42 | 35 | 28 | 14 | |
S130QJ20-47/6-4.0 | 380 | 4.0 | 2" | 132 | 71 | 67 | 61 | 96 | 57 | 54 | 50 | 41 | 33 | 17 | |
S130QJ20-68/9-5.5 | 380 | 5.5 | 2" | 132 | 104 | 99 | 90 | 124 | 84 | 80 | 74 | 60 | 47 | 23 | |
S130QJ20-97/13-7.5 | 380 | 7.5 | 2" | 132 | 149 | 142 | 128 | 174 | 120 | 113 | 105 | 85 | 67 | 32 |
