1. New streamlined appearance design, extraordinary and outstanding.
2. The ceramic sand-proof and wear-resistant full-floating impeller structure design can adapt to harsh environments and has a longer service life.
3. Optimized design of full-head electric pump, with high head, large flow, high efficiency and strong overload capacity.
4. The insertion structure of the cable is easy to replace.
5. The design of the pump head adopts a detachable stainless steel structure, which is corrosion resistant and maintains more humane.

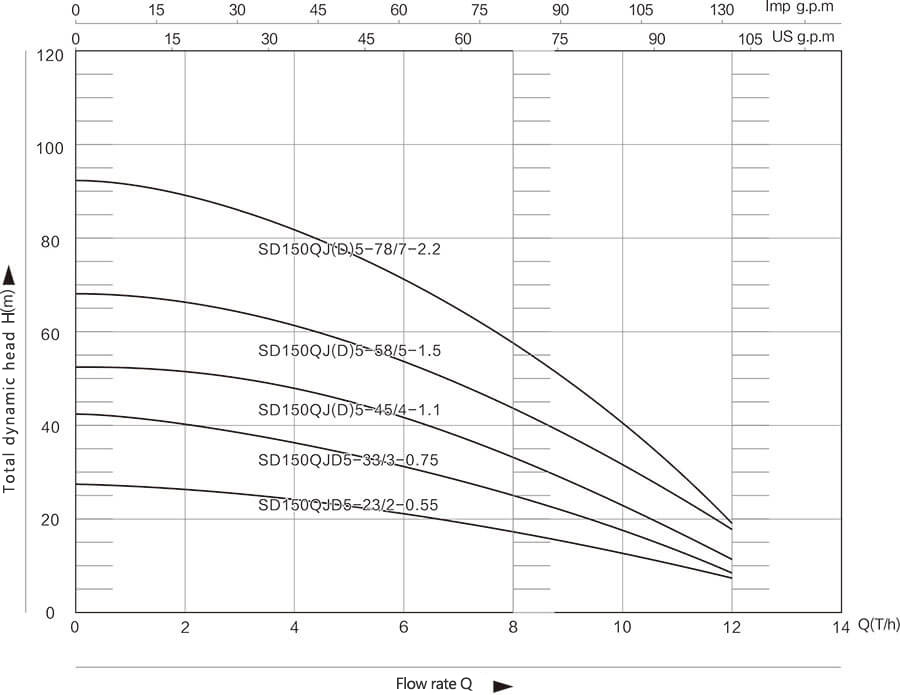

| SD150 series 5T technical parameters | ||||||||||||||
| Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 2 | 4 | 5 | 6 | 8 | 10 | 11 | 12 |
| SD150QJD5-23/2-0.55 | 220 | 0.55 | 1.5" | 135 | Total dynamic head H(m) | 28 | 27 | 24 | 23 | 21 | 17 | 13 | 10 | 7 |
| SD150QJD5-33/3-0.75 | 220 | 0.75 | 1.5" | 135 | 43 | 39 | 36 | 33 | 32 | 25 | 17 | 13 | 8 | |
| SD150QJ(D)5-45/4-1.1 | 220/380 | 1.1 | 1.5" | 135 | 53 | 52 | 48 | 45 | 42 | 34 | 24 | 19 | 12 | |
| SD150QJ(D)5-58/5-1.5 | 220/380 | 1.5 | 1.5" | 135 | 68 | 66 | 61 | 58 | 54 | 44 | 31 | 25 | 17 | |
| SD150QJ(D)5-78/7-2.2 | 220/380 | 2.2 | 1.5" | 135 | 93 | 89 | 82 | 78 | 71 | 58 | 40 | 30 | 19 |

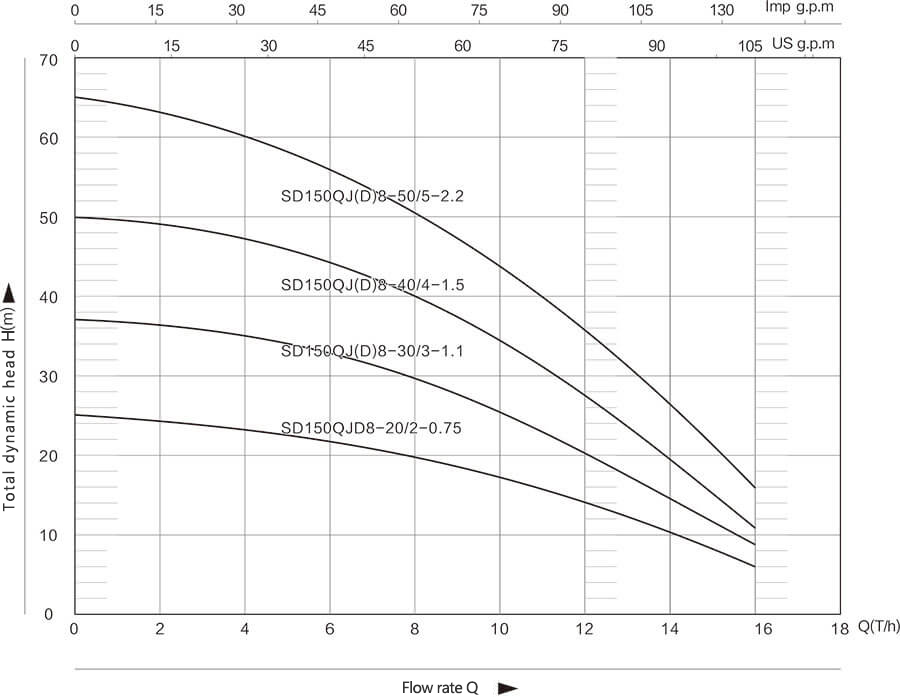

| SD150 series 8T technical parameters | |||||||||||||||
| Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 15 | 16 |
| SD150QJD8-20/2-0.75 | 220 | 0.75 | 2" | 135 | Total dynamic head H(m) | 25 | 24 | 23 | 22 | 20 | 17 | 14 | 10 | 9 | 6 |
| SD150QJ(D)8-30/3-1.1 | 220/380 | 1.1 | 2" | 135 | 37 | 36 | 35 | 33 | 30 | 25 | 20 | 15 | 13 | 9 | |
| SD150QJ(D)8-40/4-1.5 | 220/380 | 1.5 | 2" | 135 | 50 | 49 | 44 | 41 | 40 | 32 | 26 | 19 | 15 | 11 | |
| SD150QJ(D)8-50/5-2.2 | 220/380 | 2.2 | 2" | 135 | 65 | 63 | 59 | 56 | 50 | 42 | 34 | 26 | 21 | 16 |

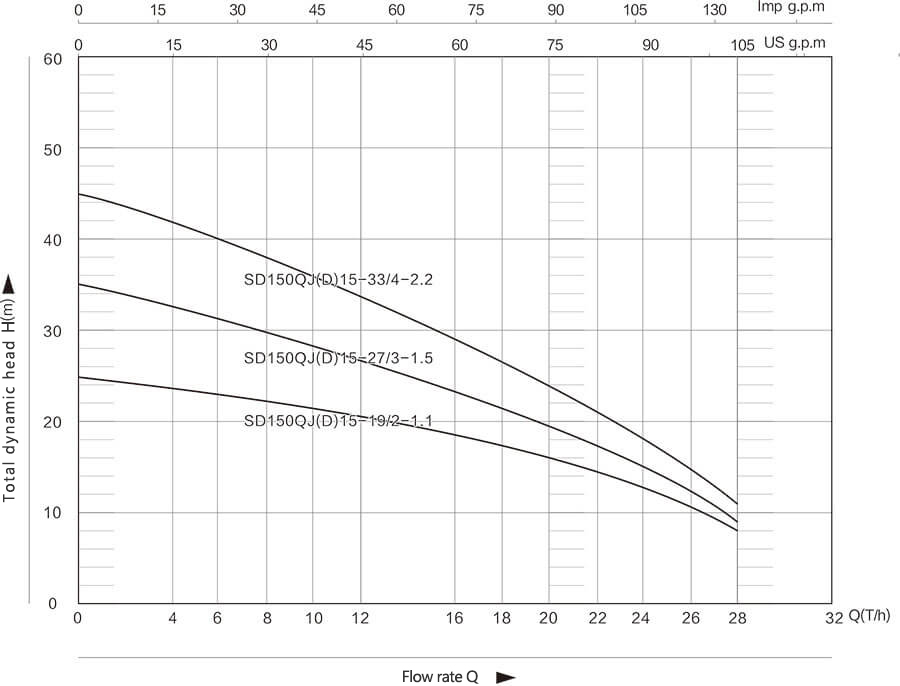

| SD150 series 15T technical parameters | |||||||||||||||||
| Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 22 | 24 | 26 | 28 |
| SD150QJ(D)15-19/2-1.1 | 220/380 | 1.1 | 3" | 135 | Total dynamic head H(m) | 25 | 23 | 22 | 21 | 20 | 19 | 16 | 15 | 13 | 11 | 10 | 8 |
| SD150QJ(D)15-27/3-1.5 | 220/380 | 1.5 | 3" | 135 | 35 | 31 | 30 | 29 | 28 | 27 | 22 | 20 | 18 | 15 | 13 | 9 | |
| SD150QJ(D)15-33/4-2.2 | 220/380 | 2.2 | 3" | 135 | 45 | 40 | 39 | 37 | 36 | 33 | 27 | 24 | 21 | 18 | 14 | 11 |

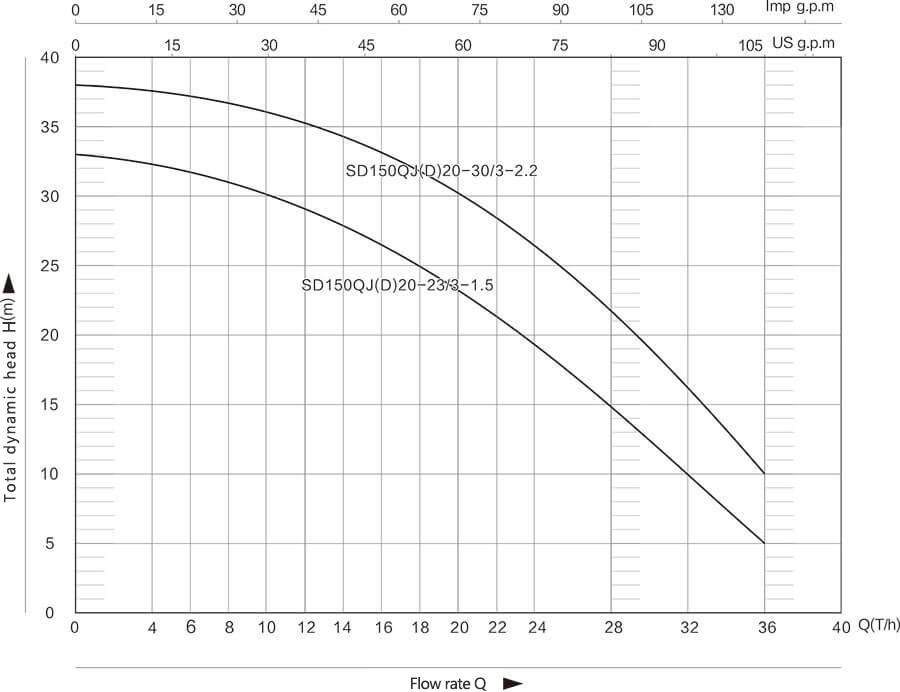

| SD150 series 20T technical parameters | ||||||||||||||||
| Model | Voltage(V) | Power(kW) | Outlet Size | Outer diameter(㎡) | Flow rate(T/h) | 0 | 6 | 10 | 14 | 18 | 20 | 22 | 24 | 28 | 32 | 35 |
| SD150QJ(D)20-23/3-1.5 | 220/380 | 1.5 | 3" | 135 | Total dynamic head H(m) | 33 | 30 | 29 | 27 | 25 | 23 | 20 | 18 | 13 | 9 | 5 |
| SD150QJ(D)20-30/4-2.2 | 220/380 | 2.2 | 3" | 135 | 38 | 36 | 35 | 33 | 31 | 30 | 28 | 25 | 19 | 14 | 10 |
